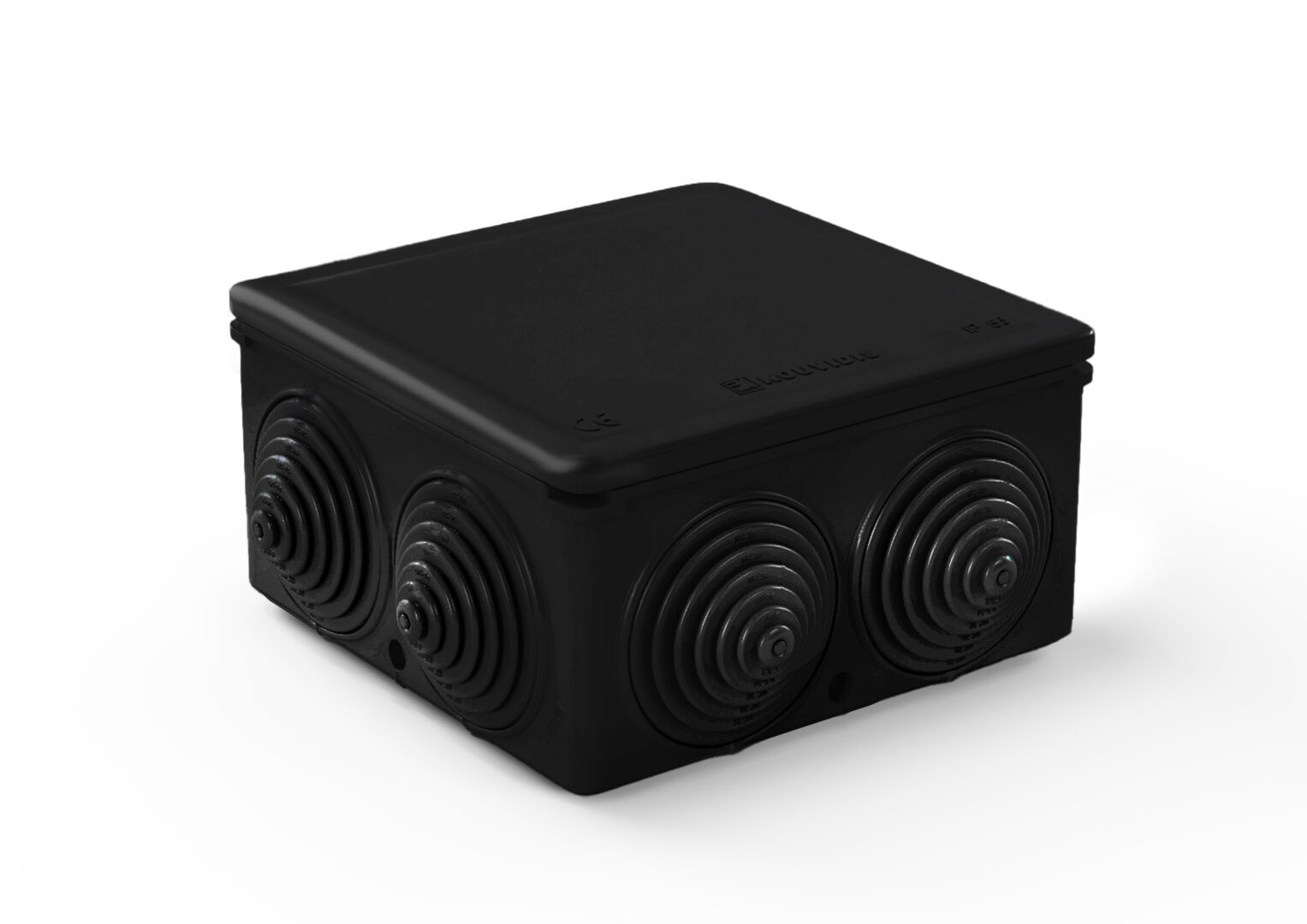

DUROSOL PLUS ISR watertight junction box with grommets
DUROSOL PLUS junction box with grommets is part of the 3layer conduits system DUROSOL PLUS – DUROFLEX PLUS. It is produced by specially stabilized thermoplastic PO blend in black color RAL 9004 and has enhanced protection against UV radiation.
Along with the 3layer conduits DUROSOL PLUS and DUROFLEX PLUS, the fittings (connection coupler, clip), all in black color RAL 9004, they compose a special conduit system which is capable of covering multiple needs at the electrical installation.
DUROSOL PLUS junction box with grommets incorporates a special anti-rodent additive to maximize safety in electrical installations from animal attacks. (Patent Protected by European Patent Office).
LEARN MORE ABOUT THE INNOVATION
APPLICATION FIELD
Ideal for exposed electrical installations.
- ΠΡΟΤΥΠΟ ΕΦΑΡΜΟΓΗΣ:EN 60670-22
- ΟΔΗΓΙΕΣ ΣΥΜΜΟΡΦΩΣΗΣ:2014/35/EE (LVD), 2011/65/EE (RoHS)
- ΧΡΩΜΑ:RAL 9004 Black
- ΒΑΘΜΟΣ ΣΤΕΓΑΝΟΤΗΤΑΣ:min IP 55
Συμμόρφωση προϊόντος, ως προς το σύνολο των απαιτήσεων των ευρωπαϊκών oδηγιών στις οποίες ανήκει- Εύρος θερµοκρασιακής αντοχής
- Βαθµός στεγανότητας έναντι στερεών σωµατιδίων και νερού (EN 60529)
- Αντίσταση στη γήρανση
- Αντίσταση στη διάδοση φλογών
- Προϊόν από πρώτες ύλες ελεύθερες αλογόνων. ∆εν περιέχει φθόριο, ιώδιο, βρώµιο, χλώριο κ.λ.π.
- Το προϊόν δεν αποτελεί ελκυστική τροφή για τρωκτικά
- Αντιστατική Τεχνολογία
- Αντιχαρακτική τεχνολογία (Patent Protected 1010513)
- ΙΔΙΟΤΗΤΕΣ
- ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ
- ΣΥΣΚΕΥΑΣΙΑ
- ΛΗΨΕΙΣ
1The holes are plugged in with special grommets for easy cable entry. The indicated dimensions on them is a guide for proper drilling depending on the thickness of the incoming cable
2Watertight due to their elastic and directly mounted cover plate, providing Ingress Protection IP 55
3At the base of the boxes are four inputs (knock outs) with dimensions between Ø20 and Ø32 of which conduits or wires can be entered. Their removal is performed using an additional tool.
4On each side there are special guides for the horizontal / vertical alignment of the box with the rest of the installation
5Each side of the boxes has provision for condensation when needed for the electrical installation
6Flame retardant raw materials with 650°C thermal resistance (Glow wire test- IEC 60695-2)
7Inside the boxes there are special ports for horizontal or diagonal positioning of additional installation mechanisms (eg Starters)
8There is a useful guide at the cover plate's back related to the cables' diameter connections number at an installation
9The permissible operating circuits voltage inside the box can be up to 800V, allowing the use of three-phase circuits of normal operation 400VAC (±10% or ±15%) and DC circuits of photovoltaic or other applications
10No toxic or corrosive gases in case of fire
11Exceptional resistance to UV radiation
12Not attractive to rodents (European Patent EP2698792)
13Incorporates antistatic technology which protects against static electricity (Patent Protected: 1009810)
14Protection against scratching from cable routing (Patent Protected: 1010513)
| Properties | |
| Raw material | PO blend |
| Temperature range | -25oC to +60oC |
| Electrical characteristics | With electrical insulated characteristics |
| Resistance to flame propagating | Non flame propagating |
| Number of entries | 7 |
| Seals | Plug in grommets |
| Ingress protection | ΙΡ55 |
| Number of base knock outs | 4 |
| Conduit alignment | Yes |
| Condensation opening | Yes |
| Flame retardant | 650oC |
| Voltage | 800V |
| UV stability | Yes |
| Halogen free | No toxic or corrosive gases in case of fire |
| Rodent repellent | Not attractive to rodents |
| Antistatic technology | Protection against static electricity |
| Antiscratch Technology | Protection against scratching from cable routing |
| Type | Part number |  |
 |
 |
 |
 |
| Ø16/20 | 3029016 | 67 | 67 | 38 | 10 | 240 |
| Ø20/16 | 3029020 | 82 | 82 | 43 | 10 | 160 |
| Ø25/32 | 3029025 | 101 | 101 | 51 | 5 | 40 |
