HYDROFLEX Connection coupler of pliable HYDROFLEX conduits

HYDROFLEX couplers have been designed in such a way to ensure high ingress protection (IP66), when connecting with HYDROFLEX pliable conduits.

APPLICATION FIELD

Protection of pressure, heat and water piping systems (PE-X, PP, PB).

  • APPLICATION STANDARD:EN 61386.22, ΕΝ 50642
  • INSTRUCTIONS FOR COMPLIANCE:2011/65/EE (RoHS)
  • COLOR:RAL 5015 blue, RAL 9004 black, RAL 3020 red
  • Πιστότητα προϊόντος, ως προς το σύνολο των απαιτήσεων των ευρωπαϊκών oδηγιών στις οποίες ανήκει
  • PROPERTIES
  • CHARACTERISTICS
  • PACKAGING
  • DOWNLOADS
1High ingress protection IP66, when connected with HYDROFLEX conduits
2Engraved with laser printing and packed in 100% recyclable packaging for their maximum protection
Properties
Raw material Heavy metals free (RoHS), specially stabilized thermoplastic U-PVC
Lower temperature range -25°C
Upper temperature range +60°C
IP ingress protection IP66
Resistance to flame propagating Non flame propagating
Ageing resistance UV stabilized
Type Part number Color
Ø23 4480023 27.8 30.8 30 blue
Ø29 4480029 33.4 36.3 20 blue
Ø23 4481023 27.8 30.8 30 red
Ø29 4481029 33.4 36.3 20 red
Ø23 4482023 27.8 30.8 30 black
Ø29 4482029 33.4 36.3 20 black
.PDF

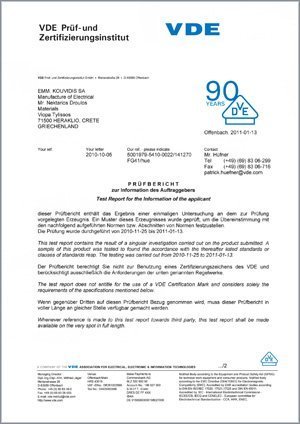

HYDROFLEX – VDE test results
.PDF
VDE RoHS Certificate
.PDF
ISO 9001 Certificate
.PDF

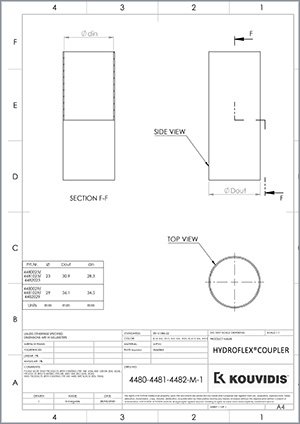

HYDROFLEX coupler – Technical Data Sheet
