Fixings For heating, cooling & water supply PPR pipes

They are used for safely mounting of all PPR pipes. They are produced by Polycarbonate (PC), a virtually unbreakable material used in products with high mechanical requirements.

APPLICATION FIELD

Intended to be used for mounting PPR pipes.

  • APPLICATION STAND:ΕΝ 61386.01, EN 50642
  • INSTRUCTIONS FOR COMPLIANCE:2014/35/EE (LVD), 2011/65/EE (RoHS)
  • COLOR:RAL 9004 Black, RAL 6024 Green
  • Product Conformity to all requirements of relative European Directives.
  • Non flame propagating product
  • Low smoke during combustion (EN 61034-2)
  • Product is made of halogen free raw materials – absence of fluorine, iodine, bromine, chlorine, etc (ΕΝ 50642)
  • PROPERTIES
  • CHARACTERISTICS
  • PACKAGING
  • DOWNLOADS
1No toxic or corrosive gases in case of fire
2Better visibility of escape ways in case of fire due to low smoke emission
3It can be mounted with the use of 4mm screws and plugs
4It has side slots for easy positioning to rails
Properties
Raw material Halogen free, heavy metals free (RoHS) and specially stabilized thermoplastic PC
Lower temperature range -25°C
Upper temperature range +90°C
Resistance to flame propagating Non flame propagating
Ageing resistance UV stabilized
Type Part number Color
Ø20 4186020/4184020 4×50 green/black
Ø25 4186025/4184025 4×30 green/black
Ø32 4186032/4184032 30 green/black
Ø40 4186040/4184040 20 green/black
Ø50 4186050/4184050 20 green/black
Ø63 4186063/4184063 20 green/black
.PDF
ISO 9001 Certificate
.PDF
VDE RoHS Certificate
.PDF

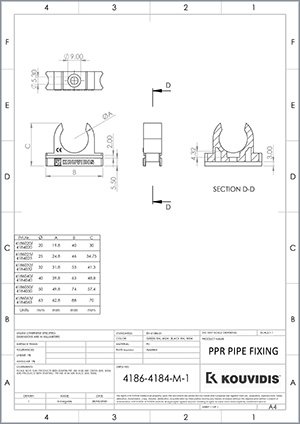

PPR pipe fixings- Technical Data Sheet
