GEODRAIN PLUS Double structured perforated wall rigid conduit with Geotextile
- CLASS:SN4 | SN8
GEODRAIN PLUS is a new generation 4-layered rigid conduit for drainage produced in 6m bars with SN4 & SN8 ring stiffness. It has two walls structured together and symmetrically perforated at 2200. The first layer consists of its smooth interior surface which facilitates the smooth flow of water while the second layer consists of its corrugated exterior which provides flexibility and mechanical resistance. The 3rd layer is consisted of the 4 longitudinal blue lines for the color identification of water. GEODRAIN PLUS is offered with pre-installed needle-punched, non-woven geotextile (150gr/m²) which consists its 4th layer.
The Geotextile used in the GEODRAIN PLUS conduits has up to 5 years UV resistance and is accompanied by a Declaration of Performance and bears the CE marking. It is installed online around the conduit at the production process with advanced sealing technology for stable and even distribution of the geotextile. The Geotextile works as a filter protecting the conduit perforation system from soil substances.
APPLICATION FIELD
They are suitable for subsoil drainage in all types of residential buildings, stadiums and surrounding areas, industrial and commercial applications, photovoltaic parks, agricultural applications, landfills, uncontrolled landfills and road networks.
- APPLICATION STANDARD:EN ISO 9969, DIN 4262-1 (Reference Standard)
- INSTRUCTIONS FOR COMPLIANCE:2011/65/EU(RoHS)
- COLOR:RAL 9004 Black, RAL 6038 Green
- PUNCHING DEGREES:220o
- NOMINAL DIAMETER:Nominal outer diameter (DN/OD)
Min-max permanent application temperature- Product with extra UV stability
- Product is made of halogen free raw materials
- Nominal outer diameter (mm)
- Πρώτη ύλη παραγωγής µε πολύ καλή συµπεριφορά απέναντι σε επικίνδυνες χηµικές ουσίες
- Τύπος προϊόντος DIN 4262-1
- Mοίρες διάτρησης
- Ακαμψία δακτυλίου
- PROPERTIES
- CHARACTERISTICS
- PACKAGING

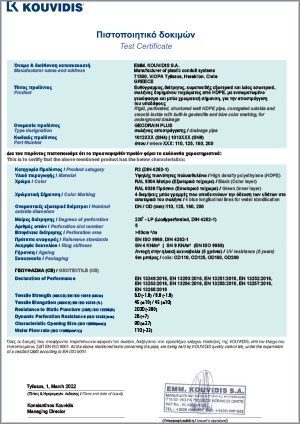

- DOWNLOADS
1SN 4 | SN 8 Ring Stiffness according to EN ISO 9969
2It has a perforation of 220 o carried out by advanced machinery along its entire length
3Marked with engraving and packed with safety straps
4Color marking with 4 blue longitudinal lines according to NF-P 98332
5It has corrosion resistance
6Exceptional resistance to solar radiation thanks to the aging stabilizers incorporated in the raw material of its outer wall
7Its much lower weight facilitates its loading, transport and storage
8Its engraved marking is a guide for the right laying of pipes on the trench
9Each bar includes a socket with hooks (integrated or separate)
| Properties | |
| Reference Standard | DIN 4262-1 |
| Type | R2 (DIN 4262-1) |
| Raw material | Halogen free, heavy metals free (RoHS) and specially stabilized thermoplastic HDPE |
| Ring Stiffness (EN ISO 9969) | SN4 | SN8 |
| Ageing resistance | 5 years |
| Chemical resistance (ISO 10358) | Yes |
| Degrees of perforation (DIN 4262-1) | 220ο ±10 (locally perforated) |
| Perforation area (DIN 4262-1) | >50cm /m |
| Nominal diameters (mm) | Outer (OD): 110, 125, 160, 200 |
| Packaging | bars of 6m |
| Connection technology | Available with a sealing ring and a socket (integrated or separate) |
| Part number
(SN4) |
Part number
(SN8) |
 |
 |
 |
 |
| 1012110 | 1013110 | 110 | 91 | 6 | 4800 |
| 1012125 | 10133125 | 125 | 105 | 6 | 3072 |
| 1012160 | 1013160 | 160 | 134 | 6 | 2520 |
| 1012200 | 1013200 | 200 | 169 | 6 | 1800 |
