MEDIFLEX HF IAS Corrugated halogen free pliable conduit
- CLASS:34442
- IMPACT RESISTANCE:6J
- RESISTANCE TO COMPRESSION:750 Nt
MEDIFLEX HF conduit belongs to KOUVIDIS halogen free product family that the company has developed since 2006. MEDIFLEX HF is a part of MEDISOL HF – MEDIFLEX HF conduit system for cable management and protection and is assembled with CONDUR fittings (couplers, clips, adaptors) and junction boxes. Its raw material is based on Polycarbonate (PC), a virtually unbreakable material that ensures extraordinary mechanical resistance to compression and impact at extreme temperatures*. its advanced properties make it ideal for projects of high mechanical requirements.
*MEDIFLEX HF conduit is being tested by KOUVIDIS quality control lab for its impact resistance (2J) at -45oC
APPLICATION FIELD
Ideal for outdoor/indoor exposed installations which require increased safety measures and high mechanical requirements such as public gathering places (airports, hotels, tunnels, malls, theaters, subways etc,) and places with costly mechanical equipment (engine rooms, industrial spaces, computer rooms, etc.).
- APPLICATION STANDARD:EN 61386.22, ΕΝ 50642
- INSTRUCTIONS FOR COMPLIANCE:2014/35/EE (LVD), 2011/65/EE (RoHS)
- COLOR:RAL 7035 Light grey
- NOMINAL DIAMETER:Nominal outer diameter (DN/OD)
- TIGHTNESS DEGREES:min IP 65
Product Conformity to all requirements of relative European Directives.- Minimum resistance to compression
- Minimum resistance to impact
- Min-max permanent application temperature
- Ingrees protection against solid objects and water (EN 60529)
- Product with extra UV stability
- Non flame propagating product
- Product is made of halogen free raw materials
- Antistatic Technology IAS (Patent Protected 1009810)
- PROPERTIES
- CHARACTERISTICS
- PACKAGING
- RECOMMENDED APPLICATIONS
- DOWNLOADS
- PROJECTS
1No toxic or corrosive gases in case of fire
2High compression (750Nt) and impact (2J) resistance of conduit, (medium type) in extreme low temperature of -45oC
3High ingress protection (min IP65), when connected with CONDUR coupler
4Marked using embossed printing and packed with 100% recyclable polyethylene film including safety straps and an informative green/red color label
5Incorporates antistatic technology which protects against static electricity (Patent Protected: 1009810)
| Properties | Class | |
| Resistance to compression | 750Nt/5cm | 3 |
| Resistance to impact | min 6J (at -25oC) | 4 |
| Lower temperature range | -25oC | 4 |
| Upper temperature range | +120oC | 4 |
| Resistance to bending | Pliable | 2 |
| Electrical characteristics | With electrical insulated characteristics | 2 |
| Protection against ingress of solid objects | min IP65 | 6 |
| Protection against ingress of water | min IP65 | 5 |
| Resistance against corrosion | Not applicable | 0 |
| Tensile strength | None declared | 0 |
| Resistance to flame propagating | Non flame propagating | 1 |
| Suspended load capacity | None declared | 0 |
| Additional properties | ||
| Raw material | Halogen free, heavy metals free (RoHS) and specially stabilized thermoplastic PC |
|
| Ageing resistance | UV stabilized | |
| Halogen free | No toxic or corrosive gases in case of fire | |
| Antistatic technology | Protection against static electricity | |

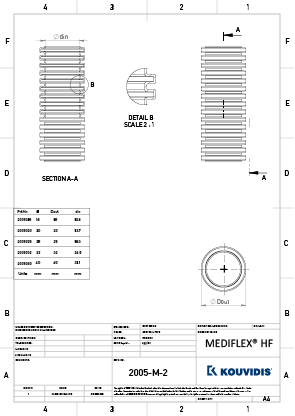

| Type | Part number |  |
 |
 |
|
 |
| Ø16 | 2005016 | 16 | 10.6 | 50 | 2,50 | 5200 |
| Ø20 | 2005020 | 20 | 13.7 | 50 | 3,20 | 4200 |
| Ø25 | 2005025 | 25 | 18.1 | 25 | 2,20 | 2100 |
| Ø32 | 2005032 | 32 | 24.0 | 25 | 3,10 | 1400 |
| Ø40 | 2005040 | 40 | 31.1 | 20 | 3,10 | 880 |
LEGEND
- Recommended
- Not recommended
- Ideal according to the manufacturer
| SCOPES | |
| Exposed | |
| Concealed (underplaster) | |
| Concealed (dry wall) | |
| Concrete | |
| Underfloor in screed | |
| Outdoor | |
| Buried underground | |
| Wood | |
| Concealed floor / ceiling | |
