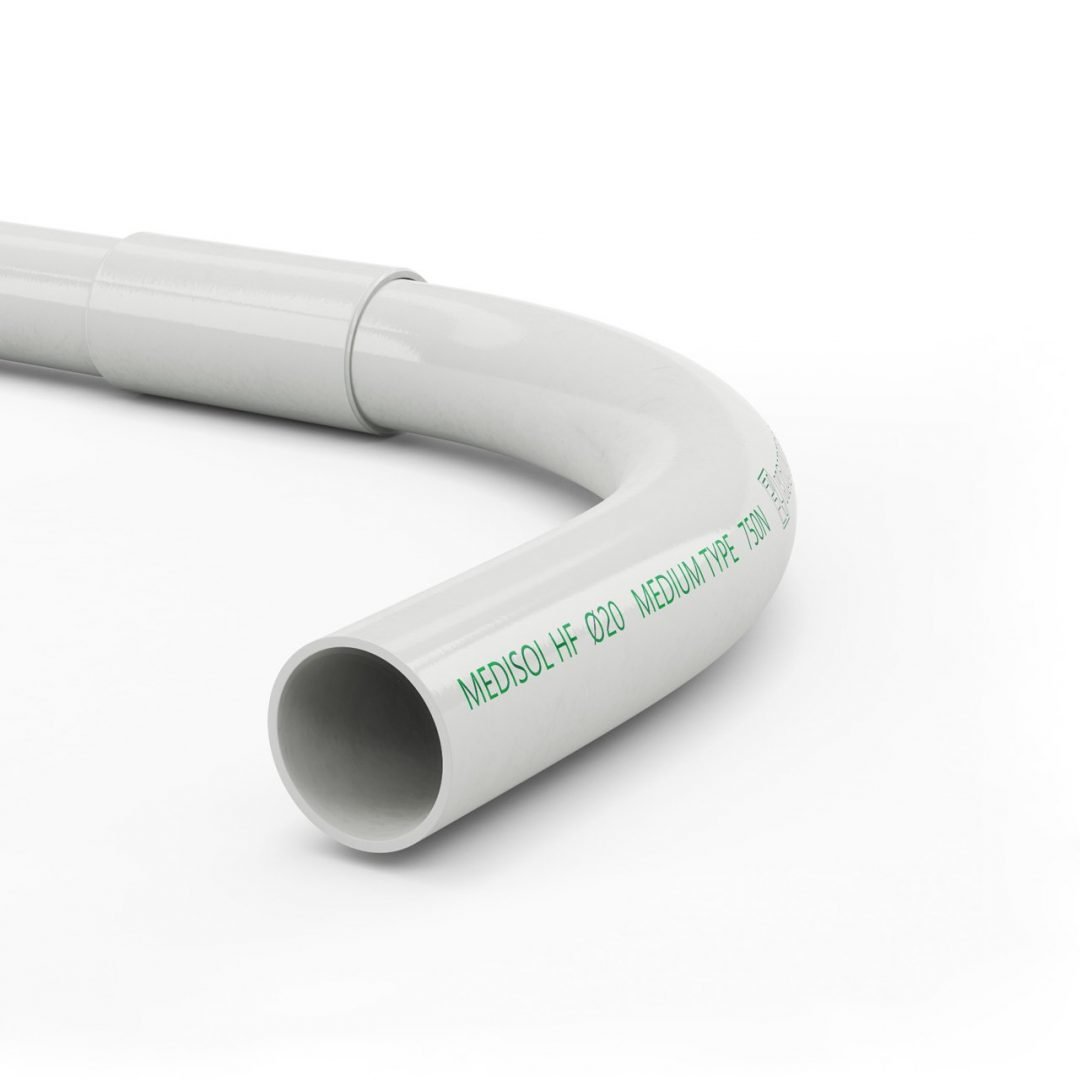

MEDISOL HF IAS Medium type halogen free bend

  • IMPACT RESISTANCE:6J
  • RESISTANCE TO COMPRESSION:750 Nt

MEDISOL HF bend is a part of halogen free MEDISOL HF – MEDIFLEX HF conduit system for cable management and protection. It has the same properties as MEDISOL HF conduit and is produced by a fully automated production line.

APPLICATION FIELD

Ideal for outdoor/indoor exposed installations which require increased safety measures and high mechanical requirements such as public gathering places (airports, hotels, tunnels, malls, theaters, subways etc,) and places with costly mechanical equipment (engine rooms, industrial spaces, computer rooms, etc.).

  • APPLICATION STAND:EN 61386.21, ΕΝ 50642
  • INSTRUCTIONS FOR COMPLIANCE:2014/35/EU(LVD), 2011/65/EU(RoHS)
  • COLOR:RAL 7035 Light grey
  • NOMINAL DIAMETER:Outer (DN/OD)
  • TIGHTNESS DEGREES:min IP 65
  • Product Conformity to all requirements of relative European Directives.
  • Minimum compression strength
  • Minimum impact strength
  • Min-max permanent application temperature
  • Ingress protection against solid objects and water (EN 60529)
  • Product with extra UV stability
  • Non flame propagating product
  • Product is made of halogen free raw materials – absence of fluorine, iodine, bromine, chlorine, etc (ΕΝ 50642)
  • Antistatic Technology
  • PROPERTIES
  • CHARACTERISTICS
  • PACKAGING
  • DOWNLOADS
1No toxic or corrosive gases in case of fire
2MEDISOL HF bend is being tested by KOUVIDIS quality control lab for its impact resistance (6J) at -45oC
3High ingress protection (min IP65), when connected with CONDUR coupler
4Marked using embossed printing and packed in 100% recyclable packaging for their maximum protection
5Incorporates antistatic technology which protects against static electricity (Patent Protected: 1009810)
Properties
Resistance to impact 6J (at -25oC)
Lower temperature range -25o
Upper temperature range +120oC
Electrical characteristics With electrical insulated characteristics
Protection against ingress of solid objects min IP65
Protection against ingress of water min IP65
Resistance to flame propagating Non flame propagating



Additional properties
Raw material Halogen free, heavy metals free (RoHS) and specially stabilized thermoplastic PC
Ageing resistance UV stabilized>10 years
Halogen free No toxic or corrosive gases in case of fire
Antistatic technology Protection against static electricity
Type Part number
Ø16 4015016 16 13.0 27 59 10 480
Ø20 4015020 20 16.7 35 74 10 480
Ø25 4015025 25 21.4 36.7 108 10 240
Ø32 4015032 32 27.6 47.6 142 6 48
Ø40 4015040 40 34.5 52.9 144 6 84
Ø50 4015050 50 45.1 62 175 4 40
Ø63 4015063 63 57.5 77 203 4 24
