Switch box For one or multi gang switches

Switch boxes have been designed for one gang or multi gang switches. They are produced by top quality raw materials that ensures maximum safety in concealed type electrical installations.

APPLICATION FIELD

Ideal for flush mounting installations.

  • APPLICATION STAND:ΕΝ 60670-22, EN 50642
  • INSTRUCTIONS FOR COMPLIANCE:2014/35/EE (LVD), 2011/65/EE (RoHS)
  • COLOR:RAL 5019 Blue (box), RAL 1018 Yellow (adaptor)
  • Product Conformity to all requirements of relative European Directives.
  • Min-max permanent application temperature
  • Non flame propagating product
  • Product is made of halogen free raw materials – absence of fluorine, iodine, bromine, chlorine, etc (ΕΝ 50642)
  • PROPERTIES
  • CHARACTERISTICS
  • PACKAGING
  • DOWNLOADS

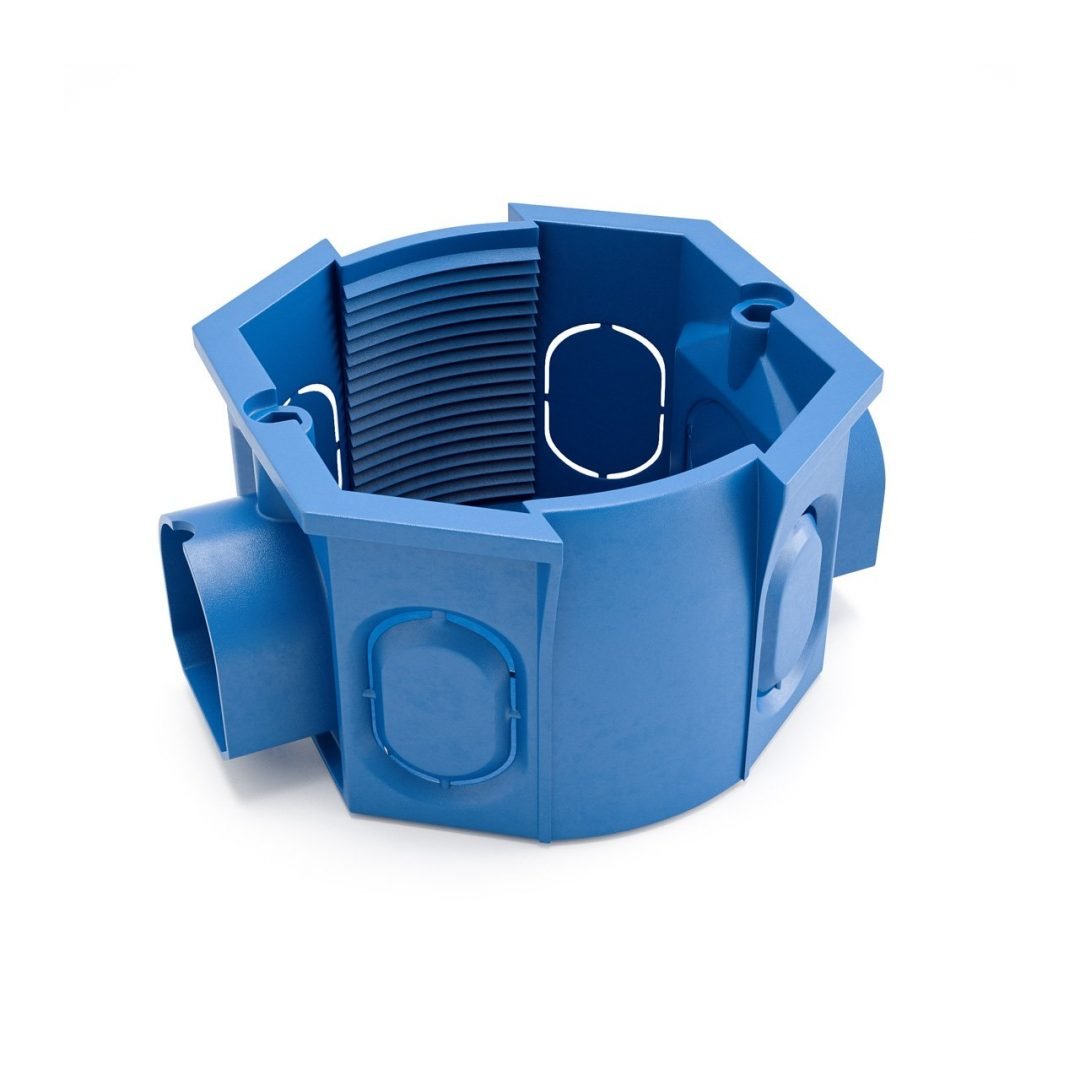

1Designed with serrated inner surface, to ensure perfect mechanism mounting
2The special spouts allow faultless boxes alignment with standard combination distance to 71mm

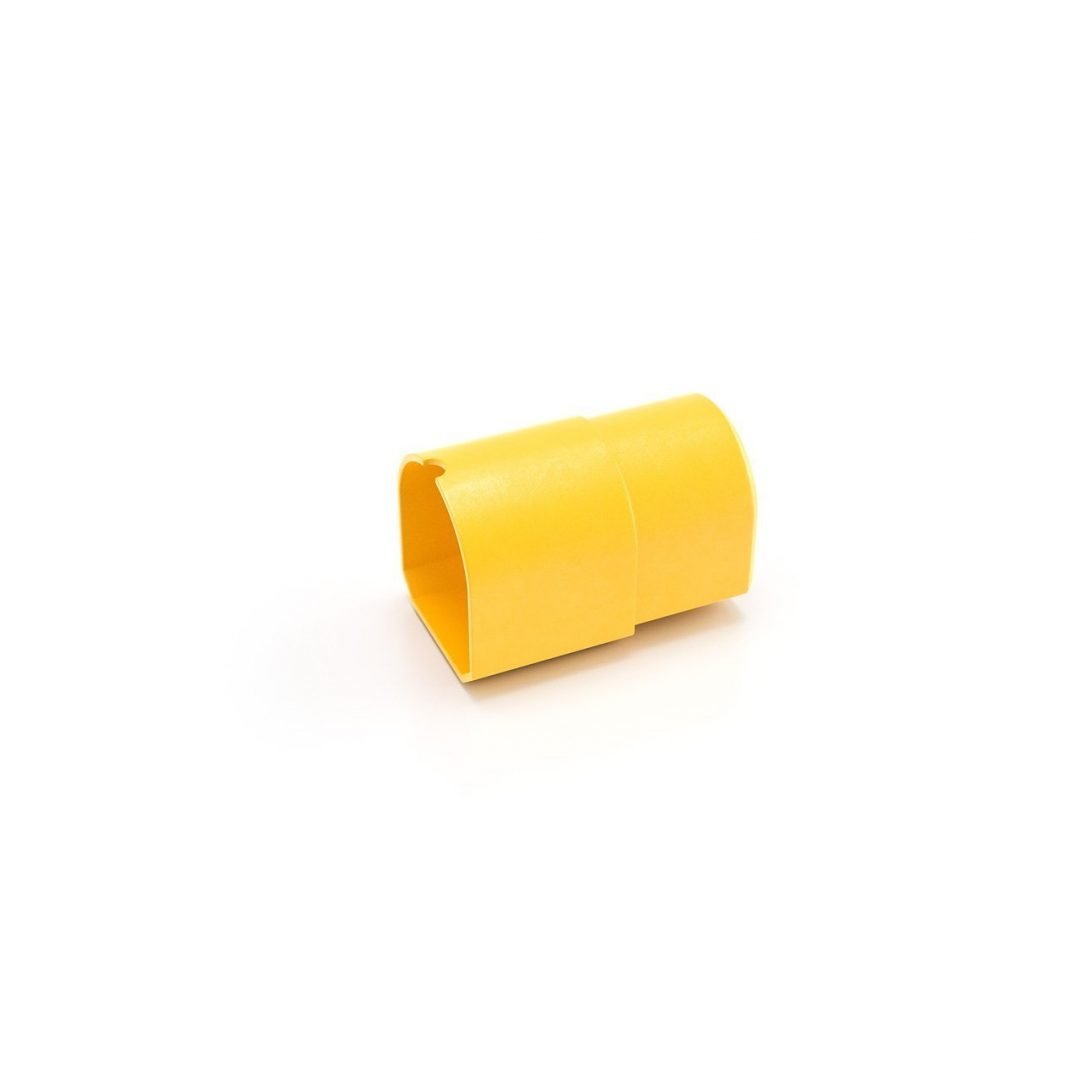

3Standardized combination distance can be extended to 91mm with the use of distance adaptors
4They have 7 conduit entries (1 of them at the base up to Ø22 (nominal outer diameter)
541mm depth creates the right installation space for switches with dimmer
Properties
Lower temperature range -15oC
Upper temperature range +60oC
Resistance to heat 650oC
Electrical characteristics With electrical insulated characteristics
IP ingress protection ΙΡ2Χ
Resistance to flame propagating Non flame propagating



Additional Properties
Raw material Heavy metals free (RoHS), specially stabilized thermoplastic PP
Conduit entries 7 up to Ø18 (1 of them at the base up to Ø22)
No of screws dome 2 of 15mm screw length
Type Part number
Multi combination gang 3011002 100
Distance adaptor 3211002 50 2700
